Floor Standing Touch Screen Kiosk
Product Description
A Floor Standing Touch Screen Kiosk (also called freestanding kiosk or digital totem) is a self-contained interactive display unit designed to stand independently on the floor, providing users with touch-based information access, self-service capabilities, or interactive content engagement.

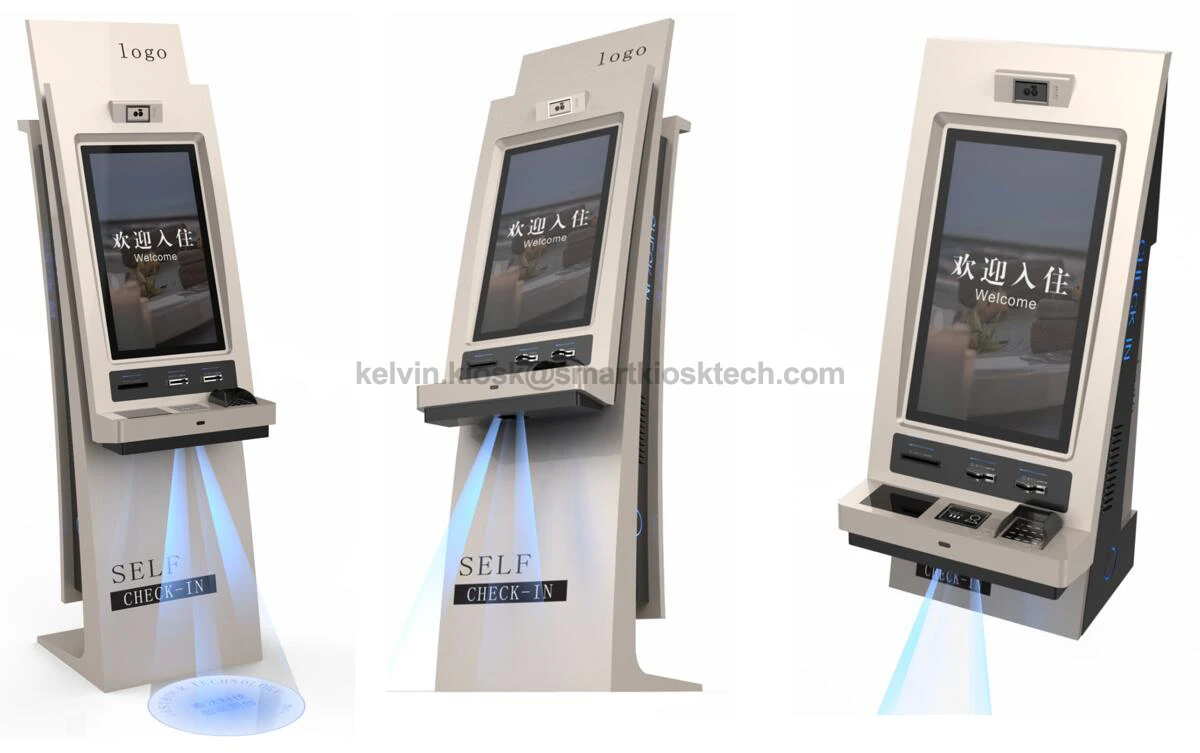

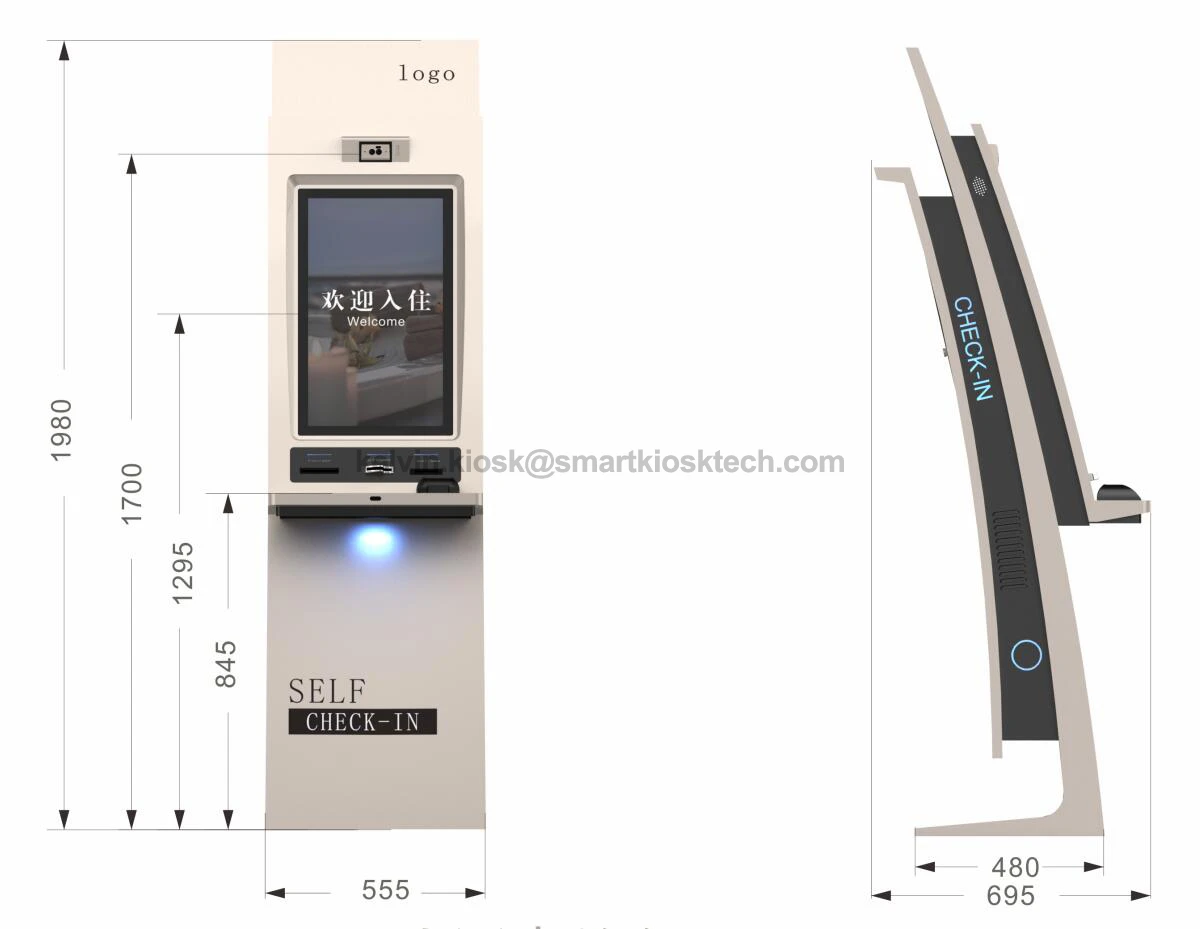

Product Design Layout
Customized Full solution for Floor Standing Touch Screen Kiosk
Product Application
Key Features & Benefits
Design & Placement
1). Maximum Visibility: Eye-level positioning ensures content is seen from afar
2). Custom Branding: Enclosure space for logos, colors, and corporate identity
3). Stable Base: Weighted construction prevents tipping in high-traffic areas
4). Space Utilization: No wall mounting required; flexible placement in open areas
Product Specification
| No | Components | Detail Description | Choose Items |
| 1 | Touch monitor (Indoor /Outdoor) |
Embedded Or Desktop Type | |
| 15inch , 17inch , 19inch (4:3) ,18.5inch ( 16:9) ,21.5 , 23.8 , 27 , 32inch , 43 inch | |||
| Brightness : 250 -1000 nit or other | |||
| 2 | Receipt printer | Brand Custom / Epson/ Star / Zebra/ Citicen | |
| 80 mm width paper , Model Custom K80/2480H /VKP80II/III | |||
| 3 | Payment terminal | Brand Verifone /Ingenico /Pax /Nayax | |
| Embedded type : Motor Card reader Or Manual Card reader Or Swipe card reader | |||
| For Example : Card reader Verifone UX300 ; Pin Pad Verifone UX 100 ; NFC Verifone UX 400 | |||
| 4 | RFID / NFC card reader | Brand : Creator , ACT , ACR | |
| 5 | Card dispenser | Brand Creator / ACT / TTCE / Omron / Sankyo | |
| Read or Writer or dispenser ( Magnetic card Or Chip card Or RFID card or SIM card ) | |||
| Solution 1: Single casstte : 150 peices , Addtional 100 peices for optional | |||
| Solution 2: Dual cassttes : 200 peices , Addtional 100 peices for optional | |||
| Solution 3: Three cassttes : 150 peices , Addtional 150 peices for optional | |||
| Solution 4: Four cassttes : 400 peices , Addtional 400 peices for optional | |||
| Optional Function : Add barcode scanner to scan 1D or 2D code on the SIM card , like Telecom kiosk | |||
| 6 | Camera | Brand SHIXIN/ Logitech or other brand | |
| 2.0 mega , 3.0 mega , 5.0 mega pixel , depend on resolution , USB interface | |||
| 7 | Computer | Product type : Embedded type | |
| Industrial Motherboard H81 (VGA or HDMI , 1-2 LAN, 6-14 USB , 6-12 RS 232 ) | |||
| CPU Intel I 3, I5 , I7 ; RAM 4G ,8G ,16G ; HDD 1T or SSD 128G /256G /512G /1T Optional | |||
| OS ( test version ) :window 10 or 11 with or without original lience | |||
| Andriod RK 3288 or RK 3299 | |||
| 8 | Barcode scanner | Brand : Honeywell , Newland , or local China brand | |
| support 1D and 2D scanner on the paper or phone , USB interface | |||
| 10 | Fingerprint | Brand : ZKTECO, Digital personal URU,other brand | |
| Optical fingerprint module or Capacitive fingerprint module | |||
| 11 | Cabinet | 1.2--1.5 mm cold roll steel or stainless steel or Galvanized plate | |
| Powder coat paint , Color optional , Choose number from RAL card or Pantone | |||
| Built-in Stereo speaker / Lable Screen print LOGO | |||
| back panel RJ-45*2, Auido controller, Power input and switch | |||
| 12 | Other Parts | Alarm device ; Door contact ; Handset ; Microphone ;proximity sensor ;Indicate light | |
| 13 | Package | Inner foam , wooden case |
Delivery Package Way
FAQ Details
Q: What certificate for kiosk product ?
A: 3C, CE or UL,Saber or RoHS or other local certificate can be customized by lab test ;
Q: How much for kiosk unit price ?
A: Kiosk unit price depend on the hardware parts of total cost , different function with different cost ; for example : same function with different brand ,also different cost ; rich experience suggested for best solution and offer ;
Q: What weight and size for kiosk cabinet ?
A: Kiosk weight and size depend on final design solution (when done 3D graph ,and done production ,then can know it ) ; include wooden case weight and size ;
Q: Does the motherboard BIOS support automatic power-on upon startup?
A: When make test , can be set up On/Off ;
