21.5 inch Free Standing Check In Kiosk
video

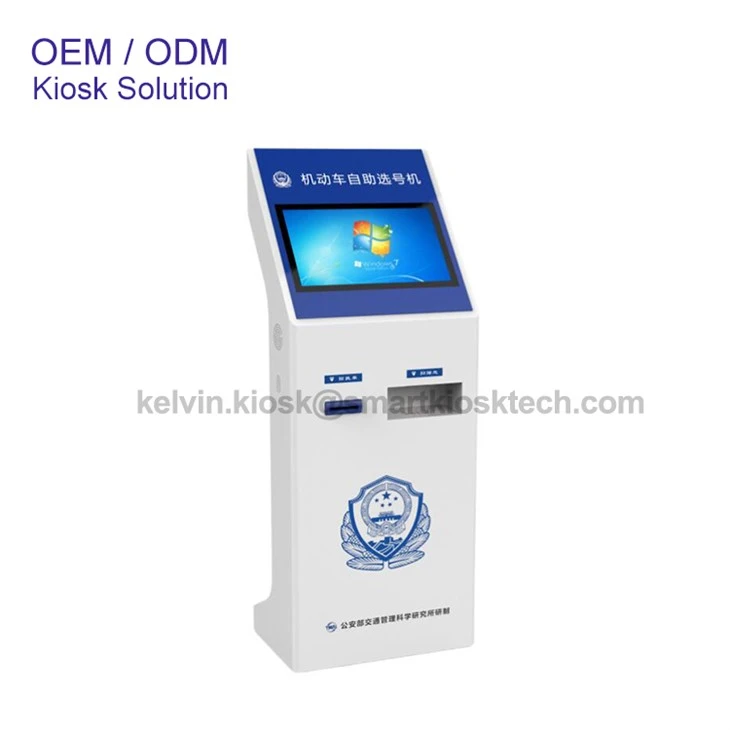

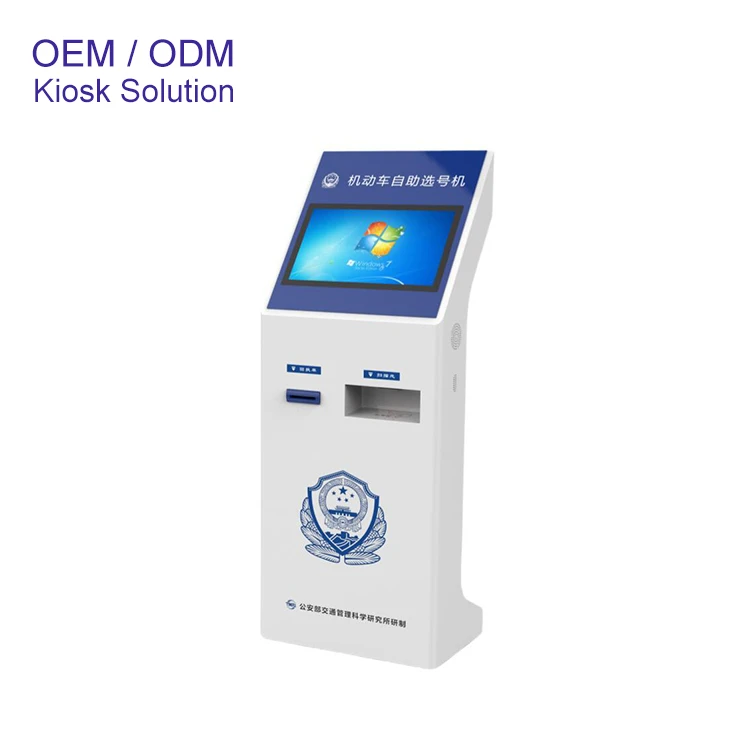

21.5 inch Free Standing Check In Kiosk

Model YJ-90B, self check-in used in lobby as free standing design.
Send Inquiry
Product Introduction

Products Description



What is a Free-Standing Check-In Kiosk?A free-standing check-in kiosk (also called floor-standing or standalone check-in kiosk) is an independent, self-service digital terminal designed for customers to complete check-in processes without staff assistance.



Key BenefitsFor Businesses:

1). Reduced Staff Workload: Automates repetitive tasks, allowing staff to focus on complex customer needs

2). Increased Efficiency: Handles 3-5x more check-ins per hour than traditional counters

3). Lower Operational Costs: Reduces front-desk staffing requirements during peak hours

4). Improved Data Accuracy: Digital data entry minimizes human errorsValuable Analytics: Tracks user behavior, wait times, and peak periods for operational optimization



For Customers:

1). Shorter Wait Times: Eliminates long queues, especially during peak hours

2). 24/7 Accessibility: Available outside standard operating hoursPrivacy & Control: Personalized experience without sharing sensitive information with staff

3). Speed & Convenience: Complete check-in in 60-90 seconds vs. 3-5 minutes with staff assistance

4). Language Flexibility: Choose preferred language for comfortable interaction

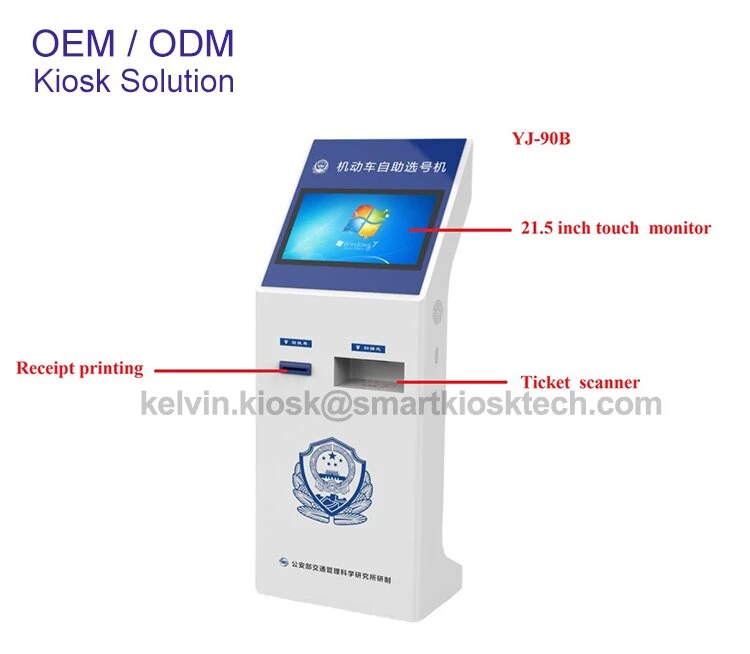

Product Design Layout



1AA3715CEFD44C97DE7955AA5210888D

Product Application



Common Applications

1).Supermarkets and grocery stores (most prevalent use case)

2).Convenience stores

3).Department stores and big-box retailers

4).Pharmacies

5).Home improvement centers

6).Airport retail shops



YJ-90B kiosk 1

YJ-90B kiosk 2

YJ-90B kiosk 3





Product Specification



No Components Detail Description
1 Touch monitor
(Indoor /Outdoor)
Embedded Or Desktop Type
15inch , 17inch , 19inch (4:3) ,18.5inch ( 16:9) ,21.5 , 23.8 , 27 , 32inch , 43 inch
Brightness : 250 -1000 nit or other
2 Receipt printer Brand Custom / Epson/ Star / Zebra/ Citicen
80 mm width paper , Model Custom K80/2480H /VKP80II/III
3 A4 printer HP / Brother / Leamark/ Fuji Xerox/ Kyocera or Other
Black and white printer Or Color printer
Paper box : Standard 150 pieces or 250 pieces , addtional box 250 pieces or 500 pieces
With paper out alarm software(SDK )
4 Payment terminal Brand Verifone /Ingenico /Pax /Nayax
Embedded type : Motor Card reader Or Manual Card reader Or Swipe card reader
For Example : Card reader Verifone UX300 ; Pin Pad Verifone UX 100 ; NFC Verifone UX 400
5 RFID / NFC card reader Brand : Creator , ACT , ACR
6 Card printer Brand Seaory/Fagoo/Evolis
Product type : black and white printer or Color printer Or other
Read or Writer or dispenser ( Magnetic card Or Chip card Or RFID card or SIM card ) , school card ,health card
Card box capacity : 100 pieces or 400 pieces
7 Camera Brand SHIXIN/ Logitech or other brand
2.0 mega , 3.0 mega , 5.0 mega pixel , depend on resolution , USB interface
8 Computer Product type : Embedded type
Industrial Motherboard H81 (VGA or HDMI , 1-2 LAN, 6-14 USB , 6-12 RS 232 )
CPU Intel I 3, I5 , I7 ; RAM 4G ,8G ,16G ; HDD 1T or SSD 128G /256G /512G /1T Optional
OS ( test version ) :window 10 or 11 with or without original lience
Andriod RK 3288 or RK 3299
9 Coin acceptor Brand : CPI G13 / other
which currency and what size for each denomination
10 Coin dispenser Brand : CPI / ITL or other
11 Coin recyler Brand : CPI / ITL or other
12 Cash acceptor Brand : CPI , MEI , Cashcode , JCM , MEI, Moneycontrol
Which currency and what size for each denomination
Casstte capacity : 600 , or 1000 or 1500 or 2000 pieces
13 Cash dispenser Brand : Fujitsu , Glory ,GRG
500 or 1000 or 2000 or 3000 pieces or each casstte
14 Cash recycler Brand : MEI, Glory ,Fujitsu ,GRG
15 Barcode scanner Brand : Honeywell , Newland , or local China brand
support 1D and 2D scanner on the paper or phone , USB interface
16 Fingerprint Brand : ZKTECO, Digital personal URU,other brand
Optical fingerprint module or Capacitive fingerprint module
17 Cabinet 1.2--1.5 mm cold roll steel or stainless steel or Galvanized plate
Powder coat paint , Color optional , Choose number from RAL card or Pantone
Built-in Stereo speaker / Lable Screen print LOGO
back panel RJ-45*2, Auido controller, Power input and switch
18 Other Parts Alarm device ; Door contact ; Handset ; Microphone ;proximity sensor ;Indicate light
19 Package Inner foam , wooden case



Delivery Package Way



1



FAQ Details



Q: 1. About Hardware Parts Configurations

A: A.Suggest best quality hardware solution with lower cost ;B.Suggest and compare different brand and model hardware parts as optional to help client to save cost ;C.Confirm what configurations need , what function need , like monitor size , touch screen , thermal printer , card reader and so onD.Supply SDK file ( Software Development Kit)for software development;

Q: 2. About Kiosk Design

A: A.Rich experience kiosk design with much more mold , more than hundreds types kiosk design for reference since 2000 year;B.Customized kiosk hardware solution OEM/ODM since 2000 year ;

Q: 3. About Kiosk Quality

A: A.With ISO Quality Management System ;B.Professional hardware engineers and designers ;C.More than 26 years kiosk experiences since 2000;D.Control each process like 3D structure ,CAD drawing , Laser cutting , CNC punching , Bending, Welding , Painting ,Assembling , Testing , Packaging ;E.Testing and Aging more than 48 hours to make sure good quality and product stability before delivery;

Q: 4. About Warranty

A: A.12 months warranty for whole machine .B.Check and guide hardware operation or test remotely ;C.During the warranty, repair and replace the defective parts for free ;D.After warranty , repair and charge part cost. suggest to prepare some backup parts for urgent need when bulk order ;

Q: 5. About Delivery

A: Help client to reduce freight cost ,For example : package way ,delivery way by airplane or by sea and so on ;

Q: 6. About Unit Price

A: A.Suggest best quality brand and model with lower cost ;B.Different hardware parts with same function , also different cost ;C.Kiosk unit depend on hardware parts cost & design & customized full project all in one cost ;
