Name: China 23.6 Inch Curved Screen With POS Card Reader Manufacturers Suppliers Factory - Smart Tech
Brand: Kiosk
SKU: 312850875

Model QM-2A , 23.6 inch Curved screen kiosk ,ticket queue kiosk .retail payment kiosk , POS card reader optional

Send Inquiry

Product Introduction

Product Description

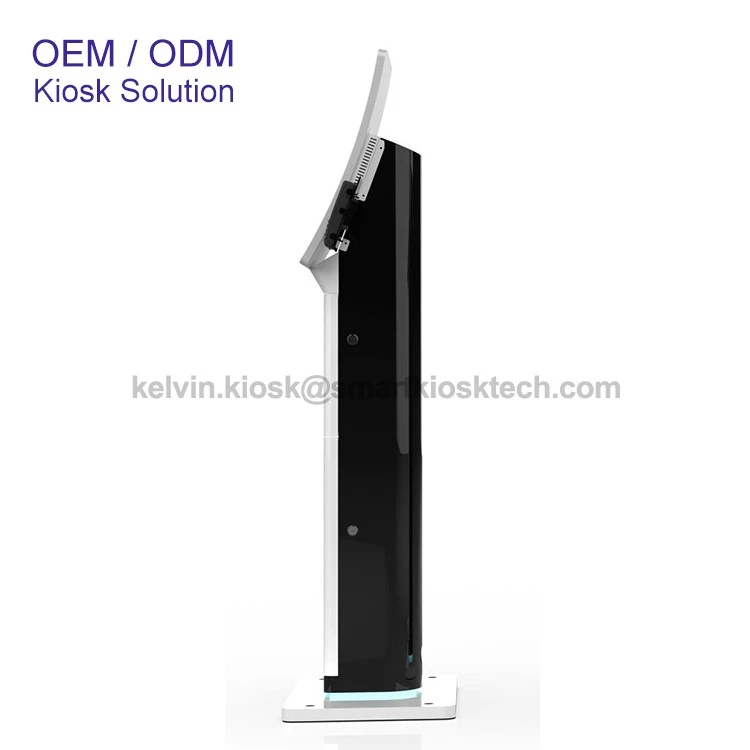

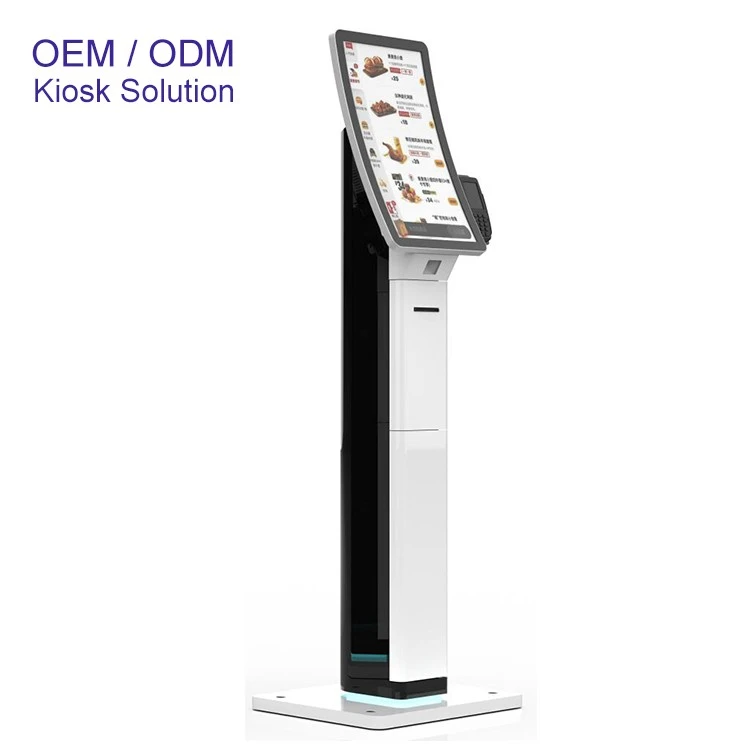

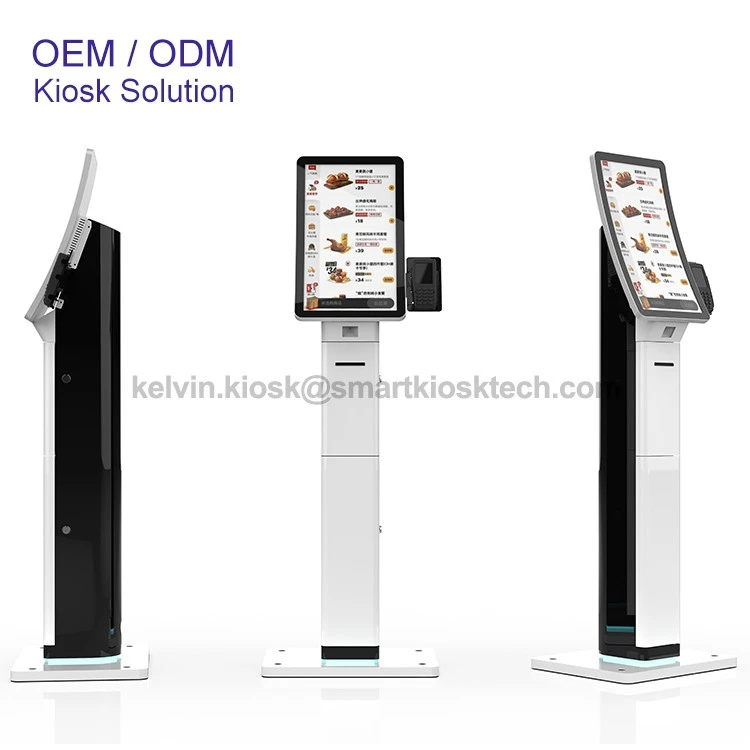

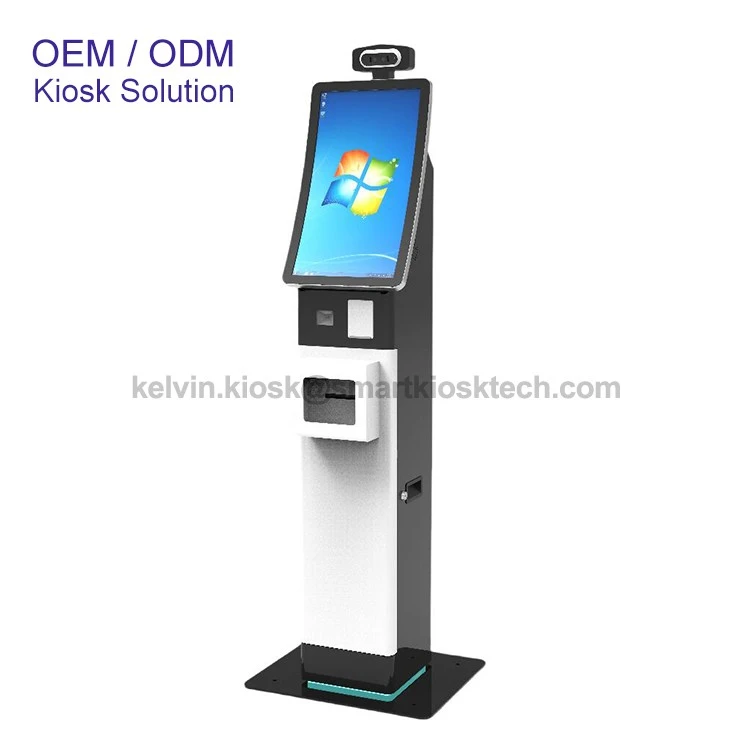

23.6 inch Curved Screen with POS card reader is a self-service terminal designed to streamline customer flow and reduce wait times in various service environments. It combines an ergonomic curved display with robust queue management functionality to create an efficient and engaging user experience.

Product Design Layout

Customized Full solution for 23.6 inch Curved Screen with POS card reader

kiosk layout

Product Application

Key Features & Queue Management Capabilities

Display & Interaction

1). Immersive Curved Design: Wraps around the user's field of view, improving visual comfort and engagement

2). True Flat Panel: Seamless touch experience with IP65 protection against dust and water droplets

3). Wide Viewing Angles: 178°/178° (H/V) for clear visibility from multiple positions

Queue Management Functions

1). Service Selection: Intuitive interface for choosing specific services (bank teller, hospital department, etc.)

2). Ticket Printing: 58/80mm thermal printer for physical queue tickets with numbers and wait time estimates

3). Digital Queueing: Optional SMS/APP integration for virtual queue numbers and status updates

4). Real-time Updates: Displays current queue position and estimated waiting time

5). Multi-service Support: Handles multiple service types and counters simultaneously

kiosk 1

kiosk 2

compressed-kiosk 3

Product Specification

No	Components	Detail Description	Choose Items
1	Touch monitor (Indoor /Outdoor)	Embedded Or Desktop Type
		15inch , 17inch , 19inch (4:3) ,18.5inch ( 16:9) ,21.5 , 23.8 , 27 , 32inch , 43 inch
		Brightness : 250 -1000 nit or other
2	Receipt printer	Brand Custom / Epson/ Star / Zebra/ Citicen
2	Receipt printer	80 mm width paper , Model Custom K80/2480H /VKP80II/III
3	Payment terminal	Brand Verifone /Ingenico /Pax /Nayax
		Embedded type : Motor Card reader Or Manual Card reader Or Swipe card reader
		For Example : Card reader Verifone UX300 ; Pin Pad Verifone UX 100 ; NFC Verifone UX 400
4	RFID / NFC card reader	Brand : Creator , ACT , ACR
5	Card dispenser	Brand Creator / ACT / TTCE / Omron / Sankyo
		Read or Writer or dispenser ( Magnetic card Or Chip card Or RFID card or SIM card )
		Solution 1: Single casstte : 150 peices , Addtional 100 peices for optional
		Solution 2: Dual cassttes : 200 peices , Addtional 100 peices for optional
		Solution 3: Three cassttes : 150 peices , Addtional 150 peices for optional
		Solution 4: Four cassttes : 400 peices , Addtional 400 peices for optional
		Optional Function : Add barcode scanner to scan 1D or 2D code on the SIM card , like Telecom kiosk
6	Camera	Brand SHIXIN/ Logitech or other brand
6	Camera	2.0 mega , 3.0 mega , 5.0 mega pixel , depend on resolution , USB interface
7	Computer	Product type : Embedded type
		Industrial Motherboard H81 (VGA or HDMI , 1-2 LAN, 6-14 USB , 6-12 RS 232 )
		CPU Intel I 3, I5 , I7 ; RAM 4G ,8G ,16G ; HDD 1T or SSD 128G /256G /512G /1T Optional
		OS ( test version ) :window 10 or 11 with or without original lience
		Andriod RK 3288 or RK 3299
8	Barcode scanner	Brand : Honeywell , Newland , or local China brand
8	Barcode scanner	support 1D and 2D scanner on the paper or phone , USB interface
10	Fingerprint	Brand : ZKTECO, Digital personal URU,other brand
10	Fingerprint	Optical fingerprint module or Capacitive fingerprint module
11	Cabinet	1.2--1.5 mm cold roll steel or stainless steel or Galvanized plate
		Powder coat paint , Color optional , Choose number from RAL card or Pantone
		Built-in Stereo speaker / Lable Screen print LOGO
		back panel RJ-45*2, Auido controller, Power input and switch
12	Other Parts	Alarm device ; Door contact ; Handset ; Microphone ;proximity sensor ;Indicate light
13	Package	Inner foam , wooden case

Exhibition Show &Customer Visit

20260616121011101362

Delivery Package Way

FAQ Details

1. About Hardware Parts Configurations

A.Suggest best quality hardware solution with lower cost ;B.Suggest and compare different brand and model hardware parts as optional to help client to save cost ;C.Confirm what configurations need , what function need , like monitor size , touch screen , thermal printer , card reader and so onD.Supply SDK file ( Software Development Kit)for software development;

2. About Kiosk Design

A.Rich experience kiosk design with much more mold , more than hundreds types kiosk design for reference since 2000 year;B.Customized kiosk hardware solution OEM/ODM since 2000 year ;

3. About Kiosk Quality

A.With ISO Quality Management System ;B.Professional hardware engineers and designers ;C.More than 26 years kiosk experiences since 2000;D.Control each process like 3D structure ,CAD drawing , Laser cutting , CNC punching , Bending, Welding , Painting ,Assembling , Testing , Packaging ;E.Testing and Aging more than 48 hours to make sure good quality and product stability before delivery;

4. About Warranty

A.12 months warranty for whole machine .B.Check and guide hardware operation or test remotely ;C.During the warranty, repair and replace the defective parts for free ;D.After warranty , repair and charge part cost. suggest to prepare some backup parts for urgent need when bulk order ;

5. About Delivery

Help client to reduce freight cost ,For example : package way ,delivery way by airplane or by sea and so on ;

6. About Unit Price

A.Suggest best quality brand and model hardware parts with lower cost ;B.Different hardware parts with same function , also different cost ;C.Kiosk unit depend on hardware parts cost & design & customized full project all in one cost ;
