Outdoor Touch Screen Kiosk
Product Description
Outdoor touch screen kiosks are rugged, weatherproof interactive digital terminals designed to operate reliably in open-air environments, withstanding rain, sun, dust, temperature extremes, and physical impacts while delivering seamless user experiences. They combine specialized hardware with durable construction to provide 24/7 self-service capabilities in public spaces.
What is an Outdoor Touch Screen Kiosk?
1). An outdoor touch screen kiosk is a self-contained interactive system engineered for outdoor deployment, featuring:
2). Weatherproof enclosure (typically IP54-rated or higher) for protection against dust and water
3). High-brightness display (1000+ nits) with anti-glare/anti-reflective coatings for sunlight readability
4). Specialized touch technology that works with gloves and in wet conditions
5). Temperature regulation systems (heating/cooling) for extreme climate operation (-20°C to 60°C)
6). Vandal-resistant components including tempered glass (7H+ hardness) and reinforced metal housing

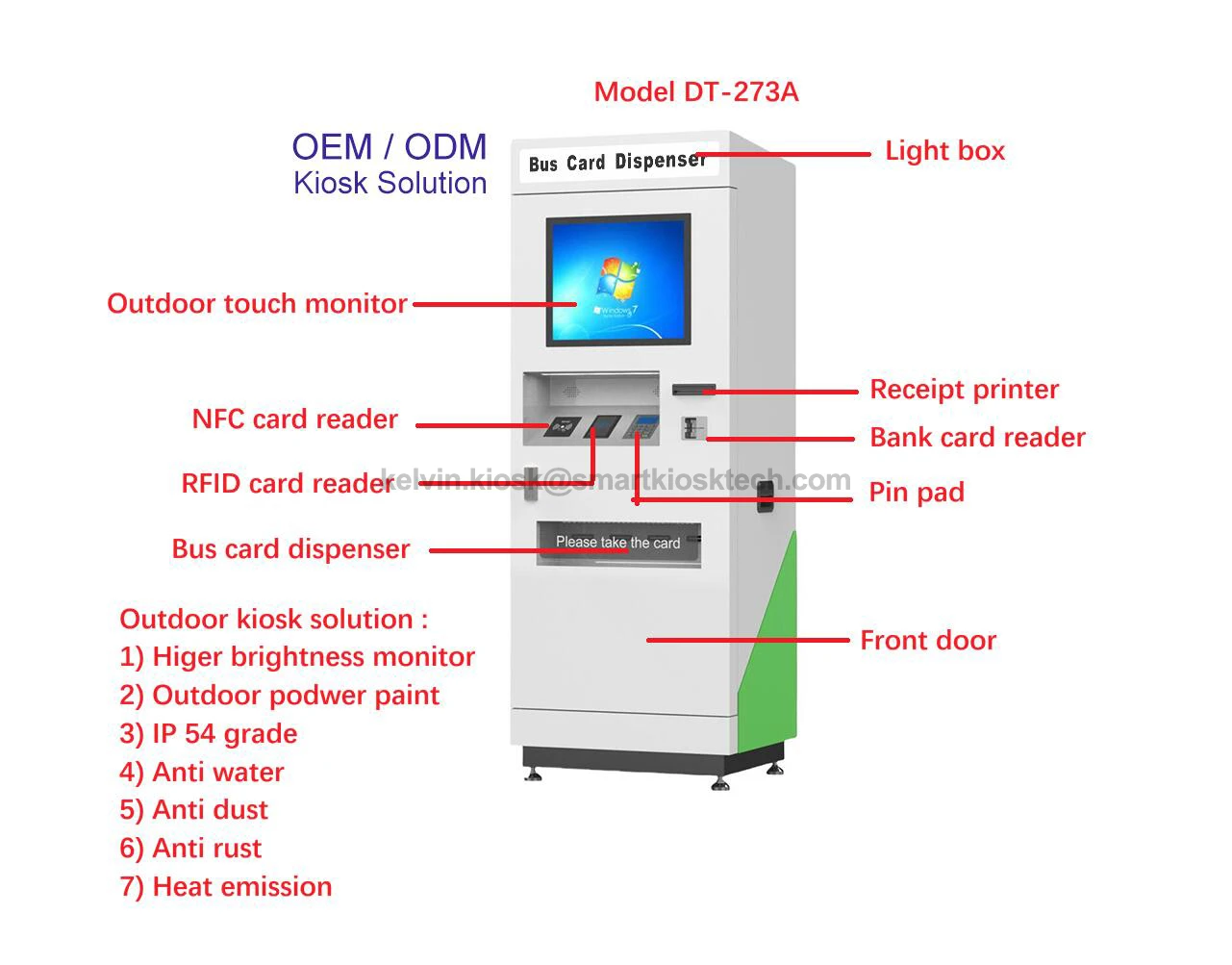

Product Design Layout
Customized Full Outdoor touch screen kiosk solution
Product Application
Product Specification
| No | Components | Detail Description | Choose Items |
| 1 | Touch monitor (Indoor /Outdoor) | Embedded Or Desktop Type | |
| 15inch , 17inch , 19inch (4:3) ,18.5inch ( 16:9) ,21.5 , 23.8 , 27 , 32inch , 43 inch | |||
| Brightness : 250 -1000 nit or other | |||
| 2 | Receipt printer | Brand Custom / Epson/ Star / Zebra/ Citicen | |
| 80 mm width paper , Model Custom K80/2480H /VKP80II/III | |||
| 3 | A4 printer | HP / Brother / Leamark/ Fuji Xerox/ Kyocera or Other | |
| Black and white printer Or Color printer | |||
| Paper box : Standard 150 pieces or 250 pieces , addtional box 250 pieces or 500 pieces | |||
| With paper out alarm software(SDK ) | |||
| 4 | Payment terminal | Brand Verifone /Ingenico /Pax /Nayax | |
| Embedded type : Motor Card reader Or Manual Card reader Or Swipe card reader | |||
| For Example : Card reader Verifone UX300 ; Pin Pad Verifone UX 100 ; NFC Verifone UX 400 | |||
| 5 | RFID / NFC card reader | Brand : Creator , ACT , ACR | |
| 6 | Card printer | Brand Seaory/Fagoo/Evolis | |
| Product type : black and white printer or Color printer Or other | |||
| Read or Writer or dispenser ( Magnetic card Or Chip card Or RFID card or SIM card ) , school card ,health card | |||
| Card box capacity : 100 pieces or 400 pieces | |||
| 7 | Camera | Brand SHIXIN/ Logitech or other brand | |
| 2.0 mega , 3.0 mega , 5.0 mega pixel , depend on resolution , USB interface | |||
| 8 | Computer | Product type : Embedded type | |
| Industrial Motherboard H81 (VGA or HDMI , 1-2 LAN, 6-14 USB , 6-12 RS 232 ) | |||
| CPU Intel I 3, I5 , I7 ; RAM 4G ,8G ,16G ; HDD 1T or SSD 128G /256G /512G /1T Optional | |||
| OS ( test version ) :window 10 or 11 with or without original lience | |||
| Andriod RK 3288 or RK 3299 | |||
| 9 | Coin acceptor | Brand : CPI G13 / other | |
| which currency and what size for each denomination | |||
| 10 | Coin dispenser | Brand : CPI / ITL or other | |
| 11 | Coin recyler | Brand : CPI / ITL or other | |
| 12 | Cash acceptor | Brand : CPI , MEI , Cashcode , JCM , MEI, Moneycontrol | |
| Which currency and what size for each denomination | |||
| Casstte capacity : 600 , or 1000 or 1500 or 2000 pieces | |||
| 13 | Cash dispenser | Brand : Fujitsu , Glory ,GRG | |
| 500 or 1000 or 2000 or 3000 pieces or each casstte | |||
| 14 | Cash recycler | Brand : MEI, Glory ,Fujitsu ,GRG | |
| 15 | Barcode scanner | Brand : Honeywell , Newland , or local China brand | |
| support 1D and 2D scanner on the paper or phone , USB interface | |||
| 16 | Fingerprint | Brand : ZKTECO, Digital personal URU,other brand | |
| Optical fingerprint module or Capacitive fingerprint module | |||
| 17 | Cabinet | 1.2--1.5 mm cold roll steel or stainless steel or Galvanized plate | |
| Powder coat paint , Color optional , Choose number from RAL card or Pantone | |||
| Built-in Stereo speaker / Lable Screen print LOGO | |||
| back panel RJ-45*2, Auido controller, Power input and switch | |||
| 18 | Other Parts | Alarm device ; Door contact ; Handset ; Microphone ;proximity sensor ;Indicate light | |
| 19 | Package | Inner foam , wooden case |
Delivery Package Way
Certificate
FAQ Details
Q: What brightness for touch monitor ?
A: Standard inner brightness 250-350 nit ; outdoor type can be customized 800-1500 nits ;
Q: What IP grade for outdoor kiosk ?
A: Standard for IP56 grade anti rain ,anti rust , heat emission , exept for hardware device port position
Q: Can the product operate in an extremely hot environment (with a temperature higher than 50°C)?
A: Normally heat emission with fan solution ; if too higher temperature , then use air conditioner solution ; For example : touch monitor must use higher brightness for outdoor application ;
Q: Does the equipment have rust prevention properties in a high-salt-spray environment (such as in coastal cities)?
A: If used for outdoor solution , must think about high-salt-spray environment test for anti rust ;
