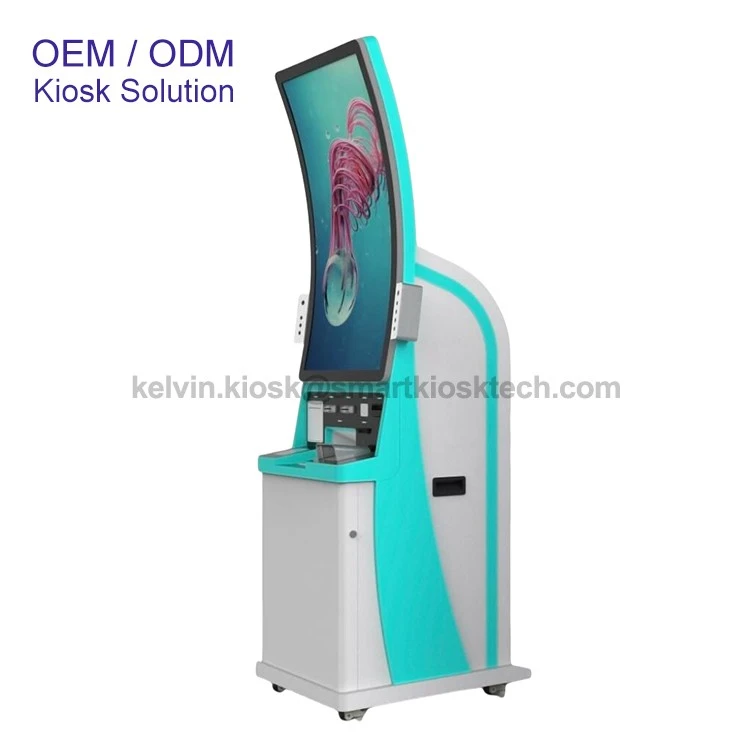

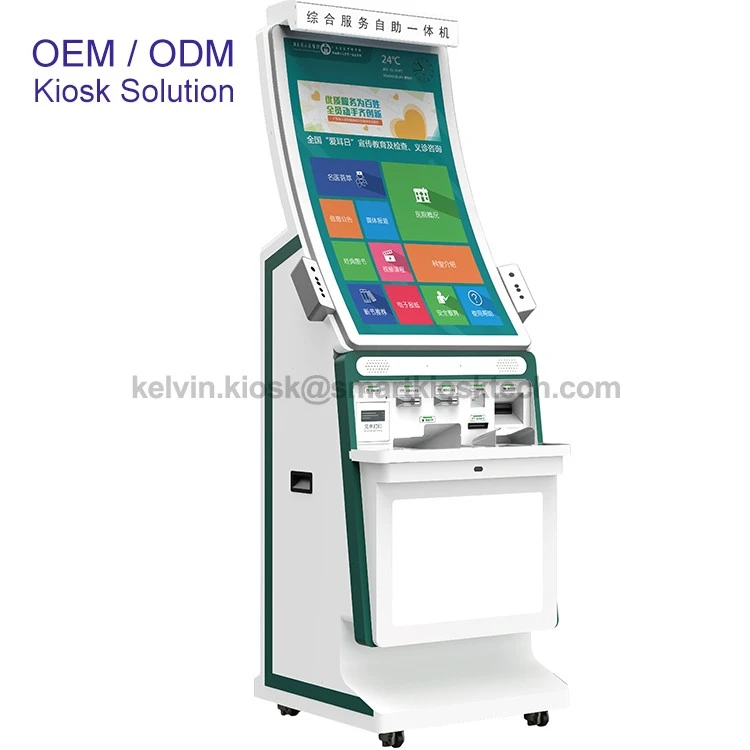

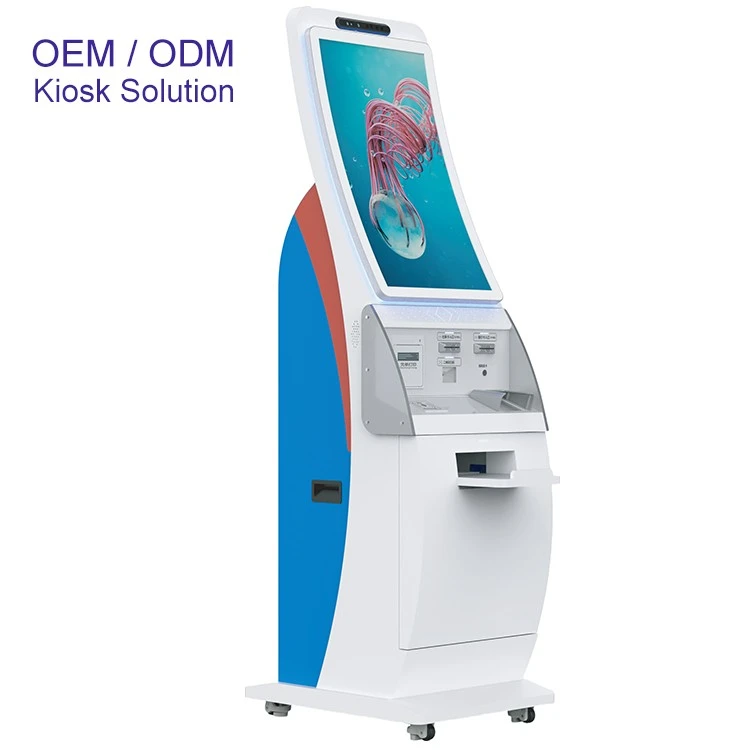

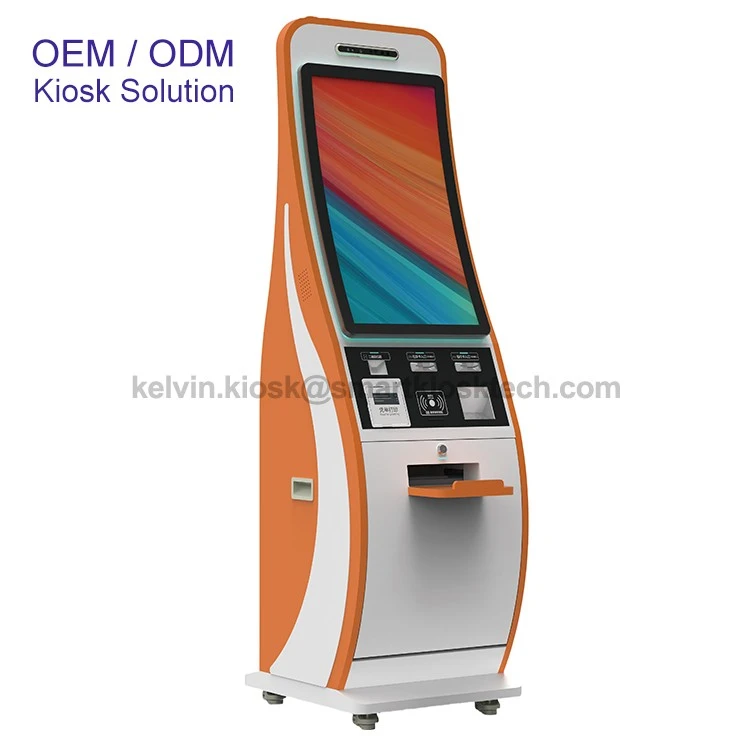

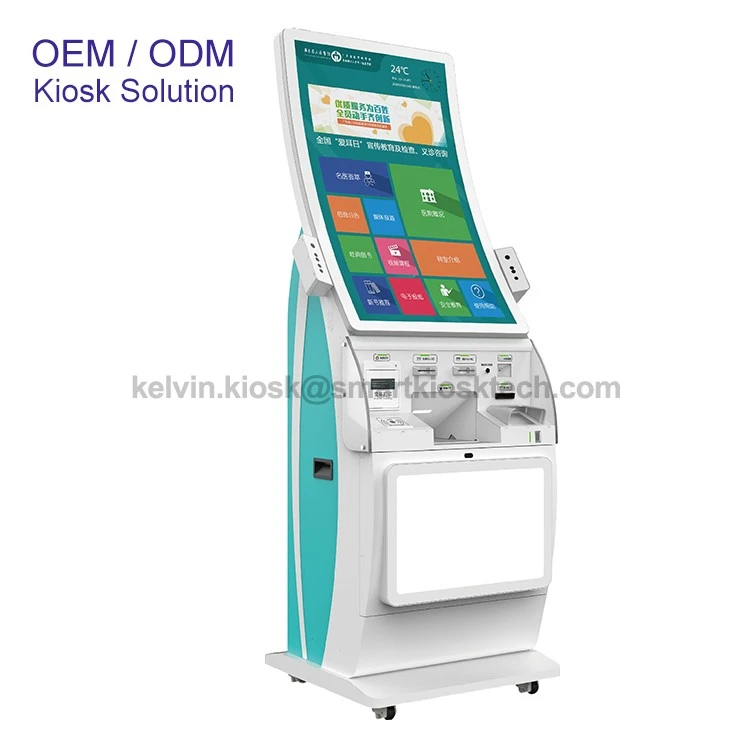

32 Inch /43 Inch Curved Touch Screen Self Service Hospital Medical Kiosk

Curved touch screen hospital medical kiosks (typically in 32-inch or 43-inch formats) utilize a concave or J-curved C-series display panel to offer improved privacy, enhanced touch ergonomics, and an immersive user experience for patient check-in, wayfinding, and bill payment.

Why Choose a Curved Display for Medical Kiosks?

1.Enhanced Privacy: The curvature wraps slightly around the user's field of view, preventing "shoulder surfing" in busy hospital waiting areas so patients can safely enter personal health information and medical records.

2.Ergonomic Accessibility: Keeps the top corners of large 32" or 43" displays closer to the user's reach, making multi-touch interaction easier for standing patients, elderly individuals, or wheelchair users.

3.Reduced Glare: The curved surface minimizes reflection from harsh overhead medical lighting compared to flat glass panels.

4.Aesthetic Appeal: Delivers a modern visual aesthetic with custom LED edge lighting (RGB halo lights) often built into the display frame.

Integrated Hardware Components

1.Patient Verification: 2D barcode/QR scanner, optical ID/passport scanner, and IC/magnetic healthcare card reader.

2.Payment Module: PCI-compliant EMV chip card reader, PIN pad, and NFC/contactless tap-to-pay.

3.Output Devices: Thermal receipt printer, wristband printer, or full-page A4 document printer housed inside the lower cabinet.

Benefits for Healthcare Providers & Patients
1.Faster Throughput: Reduces front-desk wait times during peak hours.
2.Higher Point-of-Service Collections: Increases immediate co-pay and outstanding balance recovery rates.
3.Reduced Administrative Errors: Automated data entry minimizes manual transcription mistakes in billing and demographic records.
4.Enhanced Privacy & Compliance: Configured to meet strict HIPAA privacy requirements and PCI-DSS data security standards.

Product Specification

No	Components	Detail Description	Choose Items
1	Touch monitor  (Indoor /Outdoor)	Embedded Or Desktop Type
		15inch , 17inch , 19inch (4:3) ,18.5inch ( 16:9) ,21.5 , 23.8 , 27 , 32inch , 43 inch
		Brightness : 250 -1000 nit or other
2	Receipt printer	Brand Custom / Epson/ Star / Zebra/ Citicen
		80 mm width paper , Model Custom K80/2480H /VKP80II/III
3	A4 printer	HP / Brother / Leamark/ Fuji Xerox/ Kyocera or Other
		Black and white printer Or Color printer
		Paper box : Standard 150 pieces or 250 pieces , addtional box 250 pieces or 500 pieces
		With paper out alarm software(SDK )
4	Payment terminal	Brand Verifone /Ingenico /Pax /Nayax
		Embedded type : Motor Card reader Or Manual Card reader Or Swipe card reader
		For Example : Card reader Verifone UX300 ; Pin Pad Verifone UX 100 ; NFC Verifone UX 400
5	RFID / NFC card reader	Brand : Creator , ACT , ACR
6	Card printer	Brand Seaory/Fagoo/Evolis
		Product type : black and white printer or Color printer Or other
		Read or Writer or dispenser ( Magnetic card Or Chip card Or RFID card or SIM card ) , school card ,health card
		Card box capacity : 100 pieces or 400 pieces
7	Camera	Brand SHIXIN/ Logitech or other brand
		2.0 mega , 3.0 mega , 5.0 mega pixel , depend on resolution , USB interface
8	Computer	Product type : Embedded type
		Industrial Motherboard H81 (VGA or HDMI , 1-2 LAN, 6-14 USB , 6-12 RS 232 )
		CPU Intel I 3, I5 , I7 ; RAM 4G ,8G ,16G ; HDD 1T or SSD 128G /256G /512G /1T Optional
		OS ( test version ) :window 10 or 11 with or without original lience
		Andriod RK 3288 or RK 3299
9	Coin acceptor	Brand : CPI G13 / other
		which currency and what size for each denomination
10	Coin dispenser	Brand : CPI / ITL or other
11	Coin recyler	Brand : CPI / ITL or other
12	Cash acceptor	Brand : CPI , MEI , Cashcode , JCM , MEI, Moneycontrol
		Which currency and what size for each denomination
		Casstte capacity : 600 , or 1000 or 1500 or 2000 pieces
13	Cash dispenser	Brand : Fujitsu , Glory ,GRG
		500 or 1000 or 2000 or 3000 pieces or each casstte
14	Cash recycler	Brand : MEI, Glory ,Fujitsu ,GRG
15	Barcode scanner	Brand : Honeywell , Newland , or local China brand
		support 1D and 2D scanner on the paper or phone , USB interface
16	Fingerprint	Brand : ZKTECO, Digital personal URU,other brand
		Optical fingerprint module or Capacitive fingerprint module
17	Cabinet	1.2--1.5 mm cold roll steel or stainless steel or Galvanized plate
		Powder coat paint , Color optional , Choose number from RAL card or Pantone
		Built-in Stereo speaker / Lable Screen print LOGO
		back panel RJ-45*2, Auido controller, Power input and switch
18	Other Parts	Alarm device ; Door contact ; Handset ; Microphone ;proximity sensor ;Indicate light
19	Package	Inner foam , wooden case

Exhibition Show &Customer Visit





Delivery Package Way





FAQ Details



1. About Hardware Parts Configurations

A.Suggest best quality hardware solution with lower cost ;B.Suggest and compare different brand and model hardware parts as optional to help client to save cost ;C.Confirm what configurations need , what function need , like monitor size , touch screen , thermal printer , card reader and so onD.Supply SDK file ( Software Development Kit)for software development;

2. About Kiosk Design

A.Rich experience kiosk design with much more mold , more than hundreds types kiosk design for reference since 2000 year;B.Customized kiosk hardware solution OEM/ODM since 2000 year ;

3. About Kiosk Quality

A.With ISO Quality Management System ;B.Professional hardware engineers and designers ;C.More than 26 years kiosk experiences since 2000;D.Control each process like 3D structure ,CAD drawing , Laser cutting , CNC punching , Bending, Welding , Painting ,Assembling , Testing , Packaging ;E.Testing and Aging more than 48 hours to make sure good quality and product stability before delivery;

4. About Warranty

A.12 months warranty for whole machine .B.Check and guide hardware operation or test remotely ;C.During the warranty, repair and replace the defective parts for free ;D.After warranty , repair and charge part cost. suggest to prepare some backup parts for urgent need when bulk order ;

5. About Delivery

Help client to reduce freight cost ,For example : package way ,delivery way by airplane or by sea and so on ;

6. About Unit Price

A.Suggest best quality brand and model hardware parts with lower cost ;B.Different hardware parts with same function , also different cost ;C.Kiosk unit depend on hardware parts cost & design & customized full project all in one cost ;
