Desktop Self Check Out Payment Curved Screen Kiosk
video

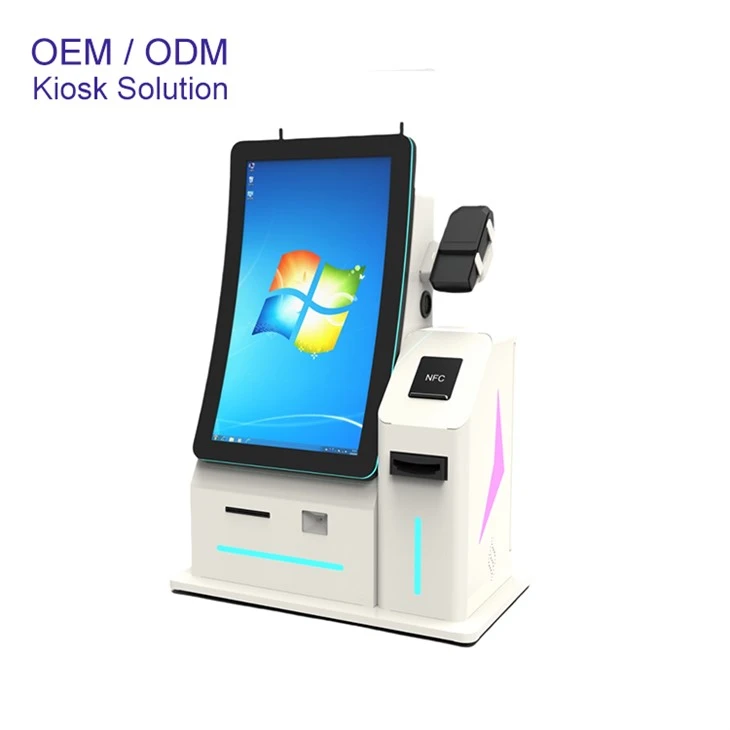

Desktop Self Check Out Payment Curved Screen Kiosk

Model TSJ-6A , 23.6 inch Desktop Self check out payment Curved screen kiosk solution , bank or retail or hospital business process
Send Inquiry
Product Introduction

Product Description



What is a Desktop Self-Checkout Payment Curved Screen Kiosk?
A specialized self-service terminal designed for countertop placement, featuring a curved touch display that enhances user experience while optimizing space efficiency. These devices allow customers to:

  • Scan items (retail) or browse menus (food service)
  • Select payment methods (cash, card, mobile, QR code)
  • Complete transactions independently
  • Print receipts or digital tickets



Product Design Layout



Customized Full solution for Desktop Self check out payment Curved screen kiosklayout

Product Application



Customization Options

● Branding: Logo silk-screening, custom color powder coating

● Hardware: Add/remove modules (cash acceptor, ID scanner, fingerprint reader)

● Software: Custom UI/UX design, integration with POS systems, API access

● Mounting: Convertible desktop/wall-mounted options available




Considerations for Purchase

Business Needs:

● Transaction volume (high volume may require more powerful processor)

● Payment methods required (cash, card, mobile, or combination)

● Space constraints (measure countertop dimensions)




Technical Requirements

● OS compatibility with existing systems

● Connectivity options (wired/wireless)

● Security features (PCI DSS compliance for payment processing)




Support & Maintenance

● Warranty period (typically 1-3 years)

● Technical support availability

● Replacement parts accessibility



​​kiosk



Product Specification



NoComponentsDetail Description
1Touch monitor
(Indoor /Outdoor)
Embedded Or Desktop Type
15inch , 17inch , 19inch (4:3) ,18.5inch ( 16:9) ,21.5 , 23.8 , 27 , 32inch , 43 inch
Brightness : 250 -1000 nit or other
2Receipt printerBrand Custom / Epson/ Star / Zebra/ Citicen
80 mm width paper , Model Custom K80/2480H /VKP80II/III
3Payment terminalBrand Verifone /Ingenico /Pax /Nayax
Embedded type : Motor Card reader Or Manual Card reader Or Swipe card reader
For Example : Card reader Verifone UX300 ; Pin Pad Verifone UX 100 ; NFC Verifone UX 400
4RFID / NFC card readerBrand : Creator , ACT , ACR
5Card dispenserBrand Creator / ACT / TTCE / Omron / Sankyo
Read or Writer or dispenser ( Magnetic card Or Chip card Or RFID card or SIM card )
Solution 1: Single casstte : 150 peices , Addtional 100 peices for optional
Solution 2: Dual cassttes : 200 peices , Addtional 100 peices for optional
Solution 3: Three cassttes : 150 peices , Addtional 150 peices for optional
Solution 4: Four cassttes : 400 peices , Addtional 400 peices for optional
Optional Function : Add barcode scanner to scan 1D or 2D code on the SIM card , like Telecom kiosk
6CameraBrand SHIXIN/ Logitech or other brand
2.0 mega , 3.0 mega , 5.0 mega pixel , depend on resolution , USB interface
7ComputerProduct type : Embedded type
Industrial Motherboard H81 (VGA or HDMI , 1-2 LAN, 6-14 USB , 6-12 RS 232 )
CPU Intel I 3, I5 , I7 ; RAM 4G ,8G ,16G ; HDD 1T or SSD 128G /256G /512G /1T Optional
OS ( test version ) :window 10 or 11 with or without original lience
Andriod RK 3288 or RK 3299
8Barcode scannerBrand : Honeywell , Newland , or local China brand
support 1D and 2D scanner on the paper or phone , USB interface
10FingerprintBrand : ZKTECO, Digital personal URU,other brand
Optical fingerprint module or Capacitive fingerprint module
11Cabinet1.2--1.5 mm cold roll steel or stainless steel or Galvanized plate
Powder coat paint , Color optional , Choose number from RAL card or Pantone
Built-in Stereo speaker / Lable Screen print LOGO
back panel RJ-45*2, Auido controller, Power input and switch
12Other PartsAlarm device ; Door contact ; Handset ; Microphone ;proximity sensor ;Indicate light
13PackageInner foam , wooden case



Delivery Package Way



1



FAQ Details



Q: About Hardware Parts Configurations

A: "A. Suggest best quality hardware solution with lower cost ;

B. Suggest and compare different brand and model hardware parts as optional to help client to save cost ;

C. Confirm what configurations need , what function need , like monitor size , touch screen , thermal printer , card reader and so on

D. Supply SDK file ( Software Development Kit)for software development;"

Q: About Delivery

A: Help client to reduce freight cost ,For example : package way ,delivery way by airplane or by sea and so on ;

Q: How to choose kiosk design ?

A: Solition 1 : suggest some kiosk design based on hardware parts and application environment ,then choose one as prefer ;

 Solution 2 : client send their own design picture ;

 Solution 3 : make complete new design based on client requirements ;

Q: How to make maintain for kiosk ?

A: 1. Make maintainence at front door or back door way;

 2. Help and make training for client staff for hardware parts device ;
