ID Card / Kiosk Passport Scanner
video

ID Card / Kiosk Passport Scanner

ID card / Driver License/Passport scanner and other travel documents ; OCR technology for MRZ code /PDF 417 or UV image / RFID function ; Kiosk Embedded type Auto-Trigger
Send Inquiry
Product Introduction

Product Description

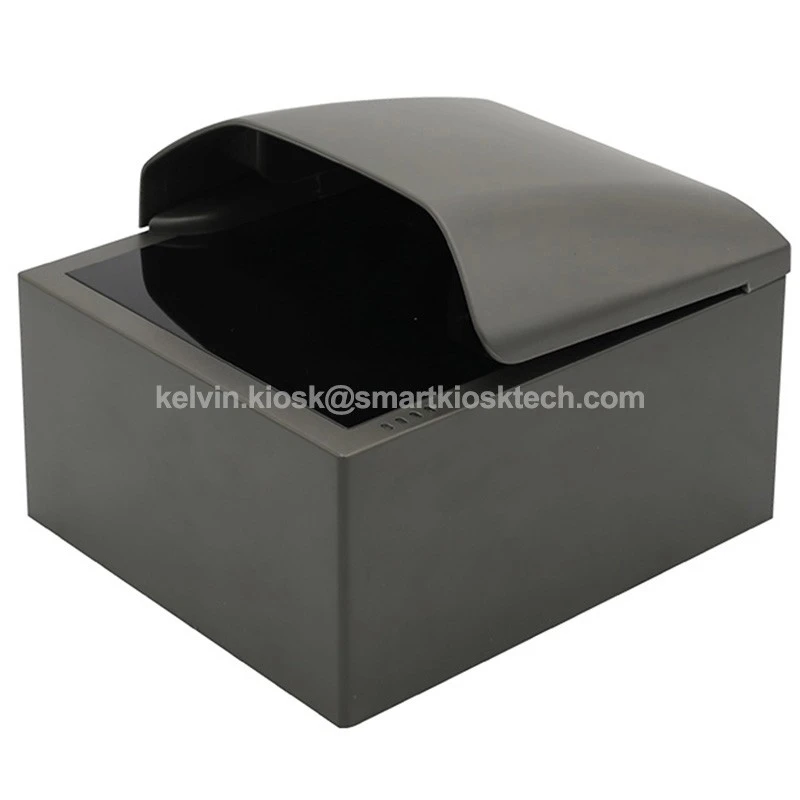

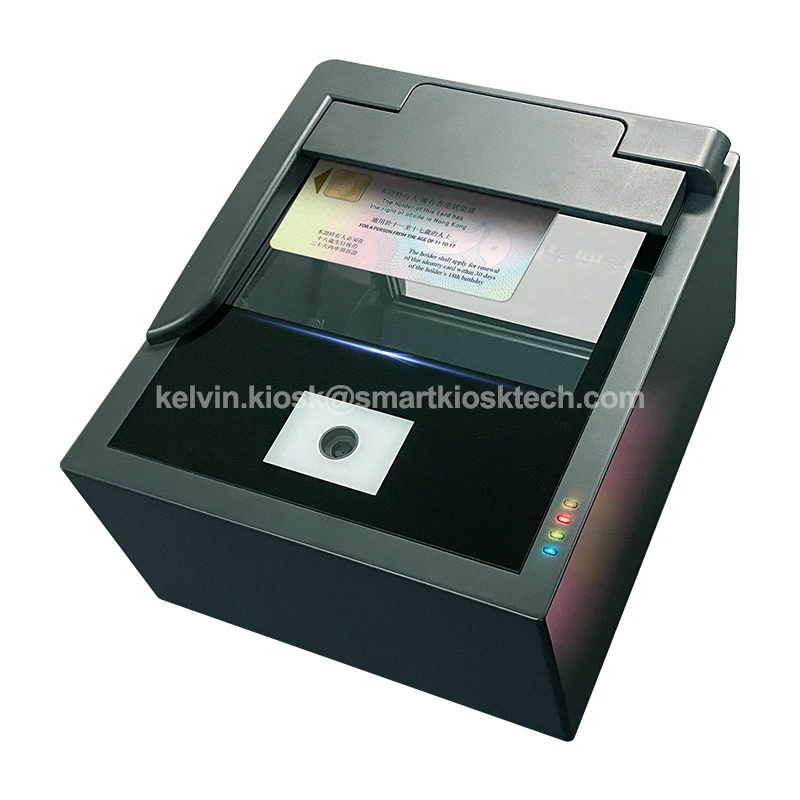

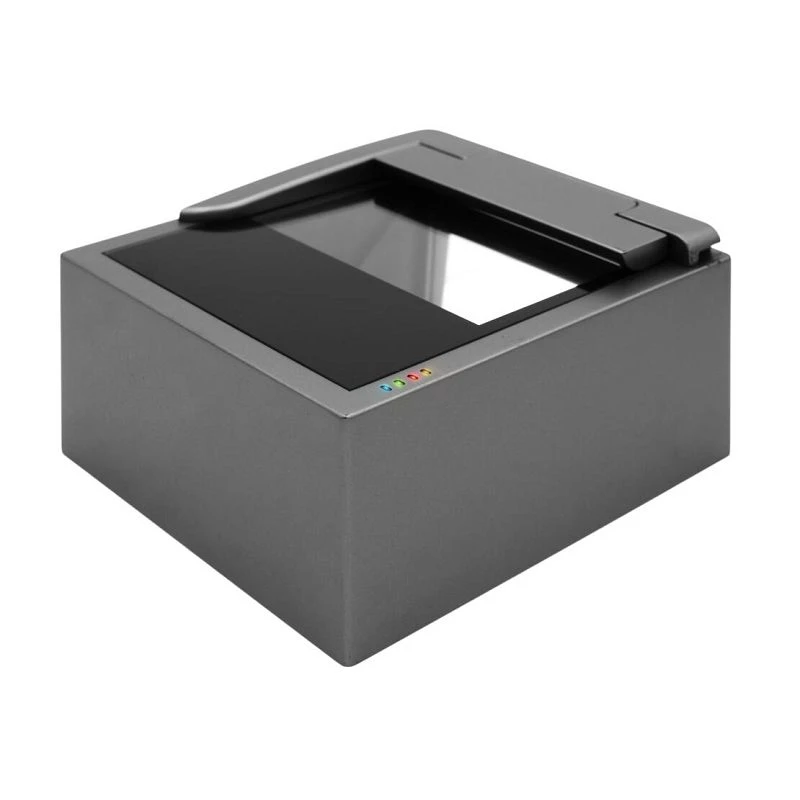

Kiosk Passport Scanner is a newly designed, multi-functional document scanner with a removable cover. It is based on OCR technology and compliant with ICAO 9303 standard. It is able to extract data from Passport, Visa, ID card, Driver License and other travel documents. It provides perfect solutions for kiosk and desktop ID authentication.



Product Design Layout

Passport scanner 1

Product Application



Self-Service Solution
After a passenger buys a ticket, he / she will pass the customs by virtue of the ticket, ID card, passport, home return card and other valid certificates. The passport reader will automatically read and identify the certificates held by the passenger. At the same time, the combination of human and card verification will be carried out. If the verification is passed, the gate will automatically punch in, and the passenger will enter the station to take the bus to reduce the waiting time in line.



Passport scanner 2

Passport scanner 3

Passport scanner 4

Passport scanner 5

Passport scanner 6

Passport scanner 7

Passport scanner 8

Passport scanner 9

Passport scanner 10

Product Specification

Machine Readable Zone ICAO 9303 standard compliant documents:

ID-1 (Identity Card)

ID-2 (Passport, Visa)

ID-3 (Passport)
Visual Inspection Zone Customization based on clients' requirements
RFID Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)

Read smart card according to ISO/IEC 7816

Support e-passport Basic Access Control (BAC) & Extended Access Control (EAC)

Support active/passive authentication
Barcode 1D: Code 128, Code 39, Interleaved 2 of 5

2D: PDF 417, QR Code, Data Matrix , Aztec Code



Image Resolution 500 DPI
  Illumination Visible, IR (850nm) and UV (365nm)
  Color Depth 24 bits/pixels
  Sensor CMOS, 5.0 Megapixels (2592*1944)
  Image Format JPG, BMP, PNG
  Field of View 127mm*88mm
Software Supported Operation System Windows 7,8,10,Vista,XP (32/64 bit WHQL certified)

Windows Server 2003 & 2008 (32/64 bit)

Linux Ubuntu, CentOS, RedHat
  Development kit Complete OCR SDK including DLLs,

OCXs, WebSocket, Samples and Demo program
  Programming Languages C#, C/C++, Java, Delphi, Visual Basic 6.0, VB.NET



Hardware Dimension (WDH) 166190103.30mm (without Cover)

166190142.80mm (with Cover)
  Interface USB 2.0
  Status LEDs Power, Ready, Error and Warning
  Buzzer Build-in buzzer
  Power Input: AC 100~240V, 50-60Hz, 0.8A

Output: DC 12V, 2A
  Operating humidity 20%-95%(non-condensing)
  Operating temperature -10 ℃ to 50 ℃ operating

-20 ℃ to 50 ℃ storage
  Warranty 1 year warranty, extensible



Exhibition Show &Customer Visit



20260616121011101362



Delivery Package Way



1



FAQ Details



1. About Hardware Parts Configurations

A.Suggest best quality hardware solution with lower cost ;

B.Suggest and compare different brand and model hardware parts as optional to help client to save cost ;

C.Confirm what configurations need , what function need , like monitor size , touch screen , thermal printer , card reader and so on

D.Supply SDK file ( Software Development Kit)for software development;

2. About Kiosk Design

A.Rich experience kiosk design with much more mold , more than hundreds types kiosk design for reference since 2000 year;

B.Customized kiosk hardware solution OEM/ODM since 2000 year ;

3. About Kiosk Quality

A.With ISO Quality Management System ;

B.Professional hardware engineers and designers ;

C.More than 26 years kiosk experiences since 2000;

D.Control each process like 3D structure ,CAD drawing , Laser cutting , CNC punching , Bending, Welding , Painting ,Assembling , Testing , Packaging ;

E.Testing and Aging more than 48 hours to make sure good quality and product stability before delivery;

4. About Warranty

A.12 months warranty for whole machine .

B.Check and guide hardware operation or test remotely ;

C.During the warranty, repair and replace the defective parts for free ;

D.After warranty , repair and charge part cost. suggest to prepare some backup parts for urgent need when bulk order ;

5. About Delivery

Help client to reduce freight cost ,For example : package way ,delivery way by airplane or by sea and so on ;

6. About Unit Price

A.Suggest best quality brand and model hardware parts with lower cost ;

B.Different hardware parts with same function , also different cost ;

C.Kiosk unit depend on hardware parts cost & design & customized full project all in one cost ;
