Model NRI G13，accept one by one，support USD/Euro/GBP or other currency, used for self service kiosk coin payment kiosk , Cctalk / MDB protocol，with RS 232 interface transfer board
Send Inquiry
Product Introduction
Product Description

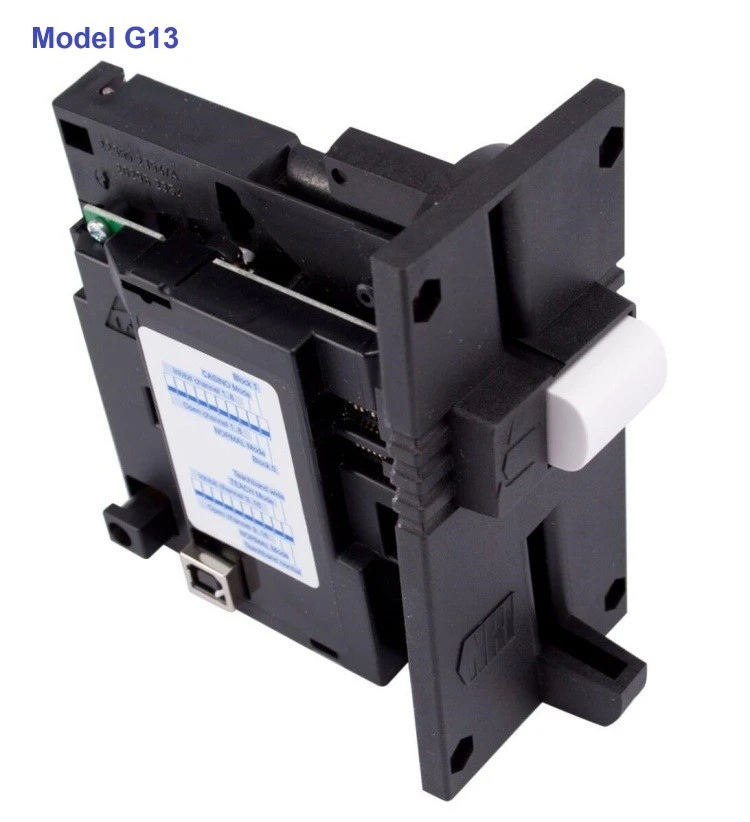

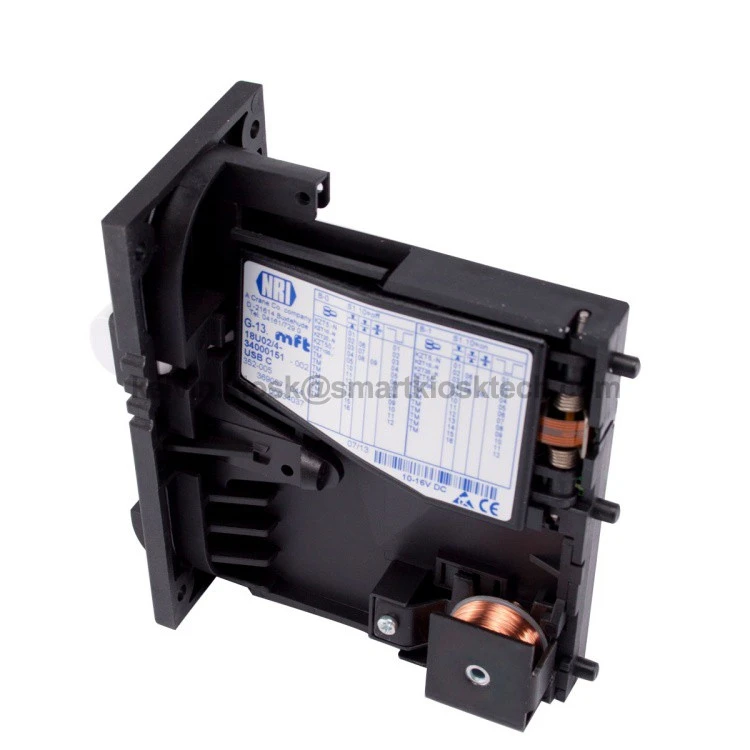

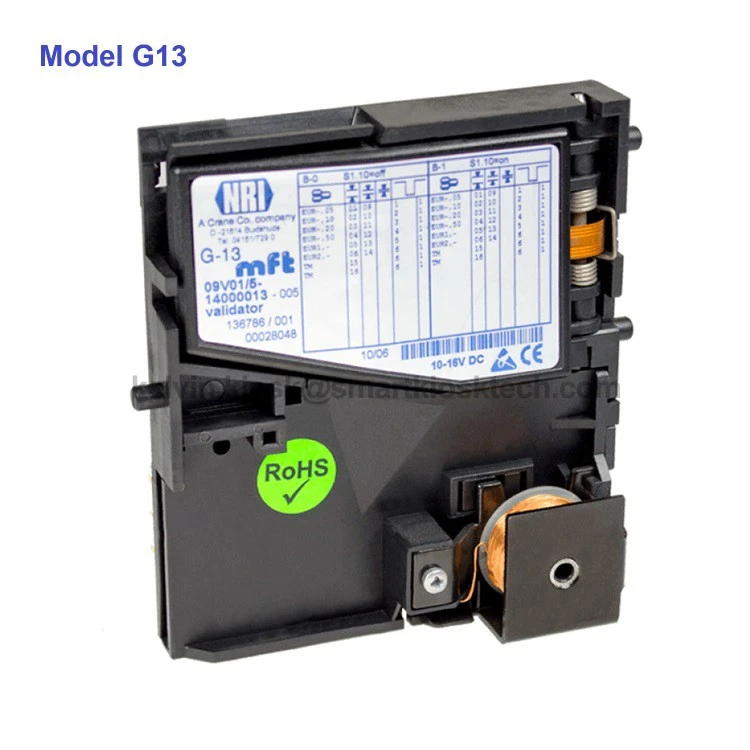

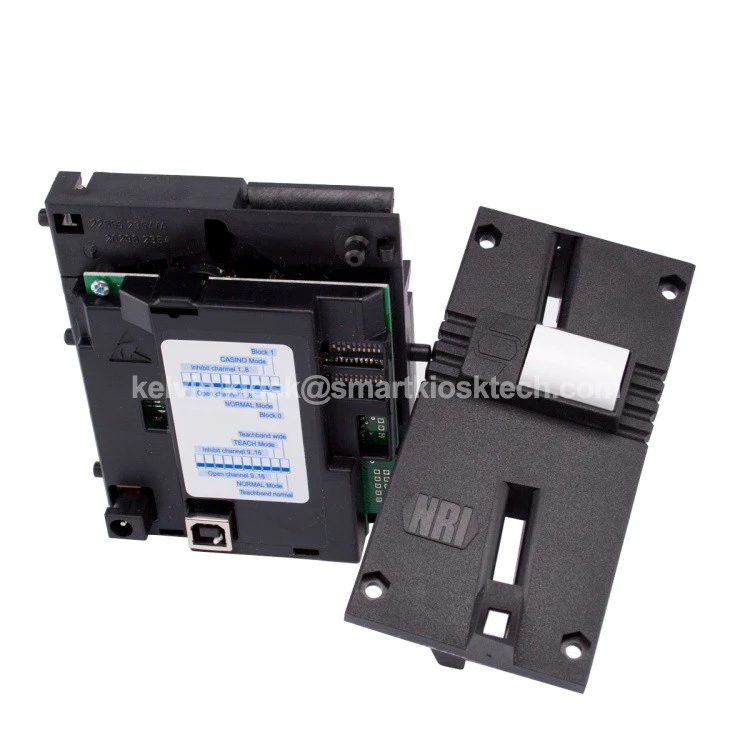

The NRl G-13TM is the market leading 3.5" coin validator, setting the standards with its unique Multi-Frequency Technology (MFT) validation. This popular coin validator is highly flexible in its application range thanks to various models, interfaces, and sorters offered. Used in applications ranging from AWP and slot machines to carwash and laundry mats, the G-13 is well suited with anti-stringing protection and protocol encryption for high-manipulation security wherever it is needed.
CPl customers across the globe can attest to the resilience of this coin validator and its proven track record of being flexible in nature yet secure in validation.
Product Benefits
High security validator uses unique Multi-Frequency Technology (MFT) protection against
string manipulation and optical monitoring of the coin path Versatile interfaces and sorting options make it appealing to a variety of applications.
Flexible design and teach options like inhibiting single or group coins/tokens, currency updates, and configuration uploads
Product Specifications
Coin Insertion
Single coin, top or front entry
Coin Speed (coin/s)
2 - 6 Coins per second
Dimensions (H x W x D in mm)
Dimensions (HxWxD) 102mm x 89mm x 52mm
Industry Format
3.5 inch
Coin Sorting
Optional / external 3-way
Operating Temperature
-25°C to +70°C
Coin Processing
32 coins max. in 2 x 16 or 1 x 32 channels Coin Diameter: 15 – 31.5mm (optional up to 32.5mm) Coin Thickness: 1.5 – 2.5mm (optional up to 3.3mm)
Front Plate
Available for front entry
Interfaces Supported
Parallel: Standard version
Parallel: SGI 16/49/46/62/33/80/100 versions as Simple Gaming Interfaces
Parallel: Casino version for high-speed coin acceptance
Parallel: AMU version for AWP Spain
Parallel: With totalizer function as 1/2-price totalizer, Timer, TV totalizer
Parallel: BDTA-compatible 16-pole interfaces
Parallel: ECV-totalizer
Serial: ccTalk, also in combination with USB
Serial: MDB and S1
Supply Voltage
10 V DC – 27 V DC ±10%, Optional: 10 V DC – 48 V DC
Exhibition Show &Customer Visit
Delivery Package Way
FAQ Details
1.About Hardware Parts Configurations
A.Suggest best quality hardware solution with lower cost ;B.Suggest and compare different brand and model hardware parts as optional to help client to save cost ;C.Confirm what configurations need , what function need , like monitor size , touch screen , thermal printer , card reader and so onD.Supply SDK file ( Software Development Kit)for software development;
2.About Kiosk Design
A.Rich experience kiosk design with much more mold , more than hundreds types kiosk design for reference since 2000 year;B.Customized kiosk hardware solution OEM/ODM since 2000 year ;
3. About Kiosk Quality
A.With ISO Quality Management System ;B.Professional hardware engineers and designers ;C.More than 26 years kiosk experiences since 2000;D.Control each process like 3D structure ,CAD drawing , Laser cutting , CNC punching , Bending, Welding , Painting ,Assembling , Testing , Packaging ;E.Testing and Aging more than 48 hours to make sure good quality and product stability before delivery;
4.About Warranty
A.12 months warranty for whole machine .B.Check and guide hardware operation or test remotely ;C.During the warranty, repair and replace the defective parts for free ;D.After warranty , repair and charge part cost. suggest to prepare some backup parts for urgent need when bulk order ;
5.About Delivery
Help client to reduce freight cost ,For example : package way ,delivery way by airplane or by sea and so on ;
6. About Unit Price
A.Suggest best quality brand and model hardware parts with lower cost ;B.Different hardware parts with same function , also different cost ;C.Kiosk unit depend on hardware parts cost & design & customized full project all in one cost ;
Hot Tags: cpi coin acceptor nri g13, China cpi coin acceptor nri g13 manufacturers, suppliers, factory
