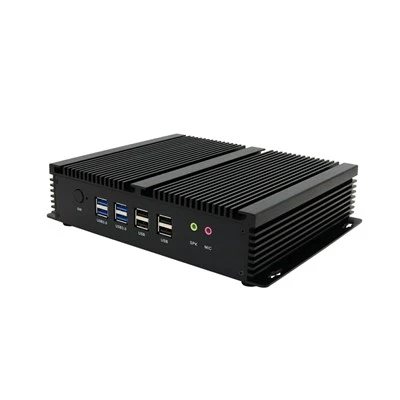

Industrial Embedded Computer
Product Description
The motherboard supports Intel LGA1151 processors and features the Intel H110 chipset, with integrated graphics from the Intel CPU. It includes 1 SO-DIMM slot for DDR4/2133/2400 MHz memory, supporting up to 16GB maximum capacity. The board also has a built-in Realtek ALC662 HD audio decoder and a Realtek 8111E Gigabit Ethernet controller.
Product Design Layout
Product Application
Features
Embedded industrial control host
Support DDR4 DDR5 desktop memory
VGA+HDMI sync/asynchronous display
Max support 10 COM ports Max support 14 USB ports
2 Gigabit network ports Support external extension switch
Standard ATX power supply design
Application
Industrial automation, Rail transit, Financial equipment, Medical and social security, MINIBOX,
Interactive application, All-in-one computer, etc.
Product Specification
| CPU | Intel® Core i5 4430, 3.0GHz |
| Memory | Support 4GB DDR3 1066/1333/1600MHZ |
| Storage | Support solid state drive 128G |
| Display Chip | Onboard VGA+HDMI |
| Display Port | Provides two display port, Support for two-screen sync/asynchronous display |
| Network RJ-45 | Onboard 2*Realtek 8111E Gigabit dual network port |
| WIFI Bluetooth | Support WIFI Bluetooth optional |
| Power Supply | M-ATX power supply |
| COM | 10 COM RS-232 function port(原文笔误 COMR S-232) |
| USB | Support 14 USB2.0, including 6*USB3.0 |
| Backend I/O Interface | Power port VGA+HDMI
|
| Physical parameters | |
|---|---|
| Dimensions | 260MM204.6MM131.3MM |
| Weight | 3.8KG |
| Application Environment | Operating Temperature -10~50°C
|
| Compatible operating system | WINDOWS7, WINDOWS8, WINDOWS10, LINUX(原文笔误 WINDOWA10) |
Exhibition Show &Customer Visit
Delivery Package Way
FAQ Details
1. About Hardware Parts Configurations
A.Suggest best quality hardware solution with lower cost ;
B.Suggest and compare different brand and model hardware parts as optional to help client to save cost ;
C.Confirm what configurations need , what function need , like monitor size , touch screen , thermal printer , card reader and so on
D.Supply SDK file ( Software Development Kit)for software development;
2. About Kiosk Design
A.Rich experience kiosk design with much more mold , more than hundreds types kiosk design for reference since 2000 year;
B.Customized kiosk hardware solution OEM/ODM since 2000 year ;
3. About Kiosk Quality
A.With ISO Quality Management System ;
B.Professional hardware engineers and designers ;
C.More than 26 years kiosk experiences since 2000;
D.Control each process like 3D structure ,CAD drawing , Laser cutting , CNC punching , Bending, Welding , Painting ,Assembling , Testing , Packaging ;
E.Testing and Aging more than 48 hours to make sure good quality and product stability before delivery;
4. About Warranty
A.12 months warranty for whole machine .
B.Check and guide hardware operation or test remotely ;
C.During the warranty, repair and replace the defective parts for free ;
D.After warranty , repair and charge part cost. suggest to prepare some backup parts for urgent need when bulk order ;
5. About Delivery
Help client to reduce freight cost ,For example : package way ,delivery way by airplane or by sea and so on ;
6. About Unit Price
A.Suggest best quality brand and model hardware parts with lower cost ;
B.Different hardware parts with same function , also different cost ;
C.Kiosk unit depend on hardware parts cost & design & customized full project all in one cost ;
